Quality Custom Made Tradesman Trailers

Huge range of quality and custom made tradesman trailers available for sale online or onsite at our warehouse.

We have the best selection of tradesman trailers in Sydney Australia. You can buy one of our stock tradesman trailers or you can have your trailer fully customised to suit your specifications and needs. We can also paint your trailer any colour you would like. Our highly experienced staff and tradesman will work with you very closely and only use the best of materials to give you the best quality custom tradesman trailers money can buy.

When choosing your custom made tradesmen trailer, it is important to think about where your entry points are going to be, and whether you will be needing a lift up door, side swing door or a dropping ramp. Also take into consideration what type and size of tools and equipment you will be putting inside or on top of your custom tradesman trailer, and also how you plan to access them.

We have many optional extras and upgrades for your Tradesman Trailers.

We can also have our onsite tradesman make any repairs to your current tradesman trailer as well

Tradesman Trailer Sizes

Single Axle – GVM 750 KG – With Brakes 1.4 tonne GVM

  • 6×4 x 4 foot high
  • 6×4 x 5 foot high
  • 7×4 x 4 foot high
  • 7×4 x 5 foot high
  • 7×5 x 5 foot high
  • 8×5 x 5 foot high
  • Brakes not included

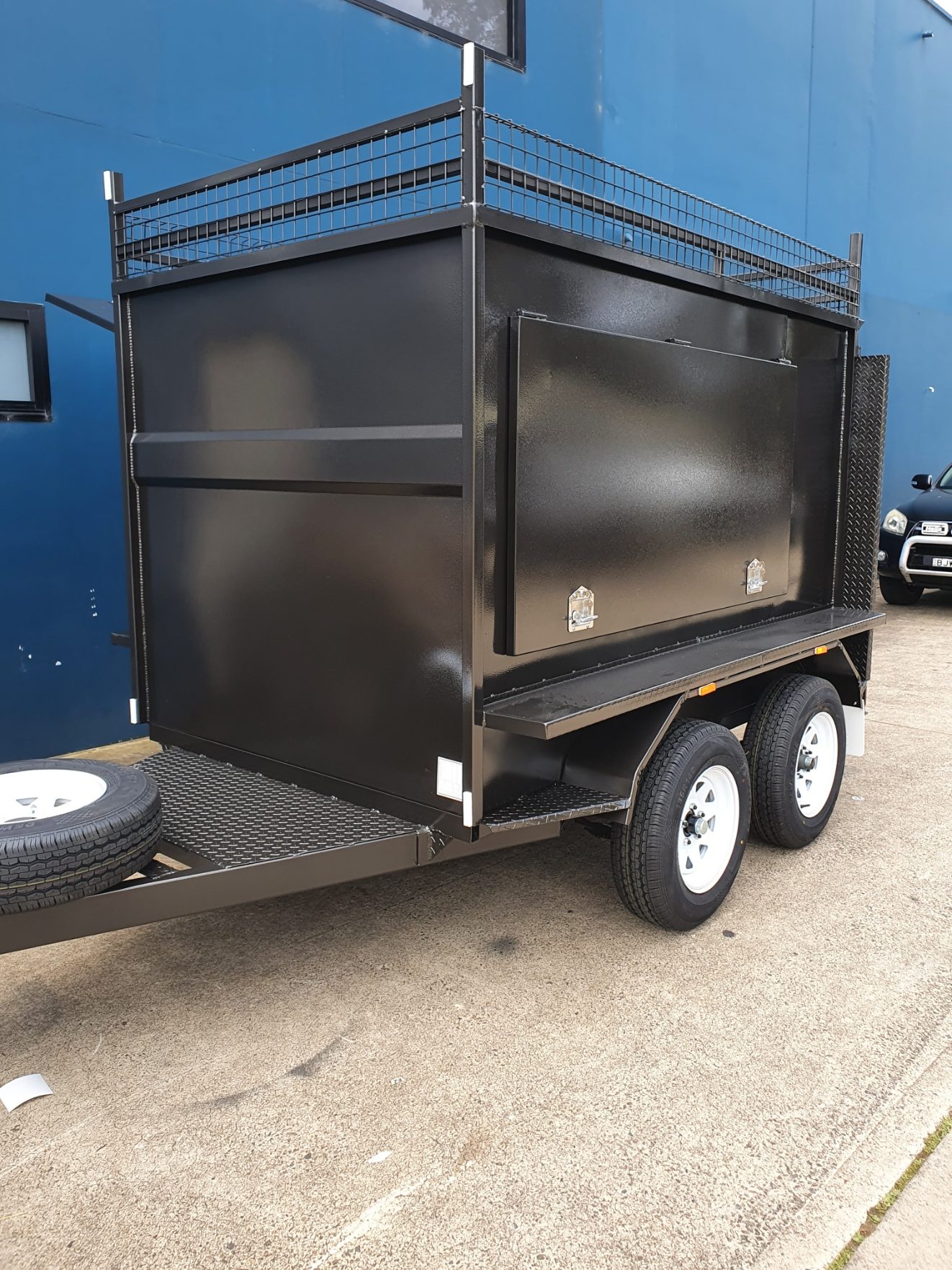

Tandem Axle – With Brakes 2 tonne GVM

  • 8×5 x 5 foot high
  • 8×6 x 5 foot high
  • Other sizes available on request.

7x4x4 Tradesman Trailer

  1. 65 x 35 x 2.0 RHS Outside Chassis
  2. 40 x 40 x 2.0 RHS Cross Bar
  3. 75 x 50 x 3.0 RHS Draw Bar 1500mm long
  4. 1200mm internal height
  5. 2100mm internal length
  6. 1200mm internal width
  7. 65″ Square Axel
  8. 2 x 7 Leaf Spring
  9. 15″ Pre-loved wheels
  10. Ford or Holden Stud Pattern
  11. Heavy Duty Swing up Jockey Wheel

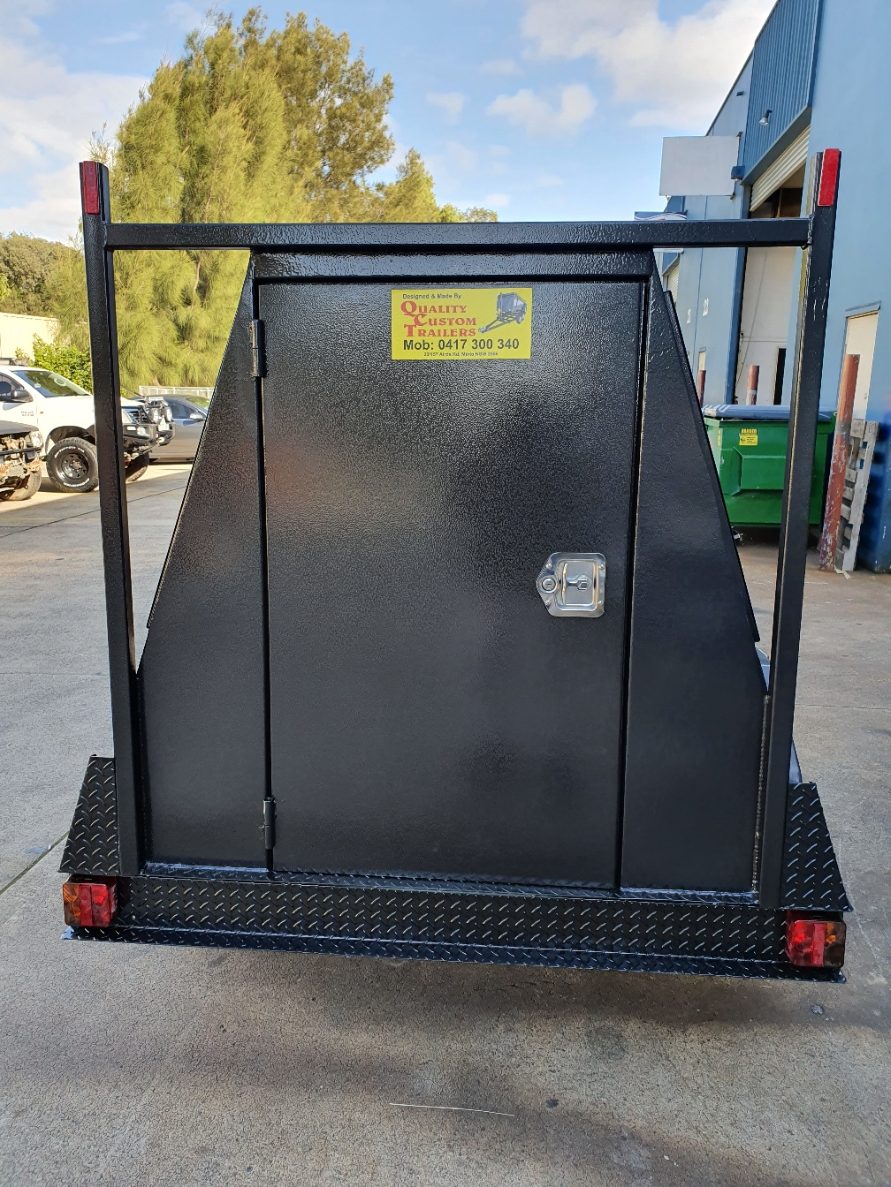

  12. Barn door at rear with T-Locks x 2
  13. Spare Wheel mounted on Draw Bar
  14. 2.1mm Checker Plate floor full seam welded
  15. 2 handles with key for security on each side door
  16. 2 x Ladder racks (H/Racks) on roof
  17. 7 pin flat plug or round
  18. Blue Slip ready for rego

Tradesman Trailer Upgrades

  • Tool Boxes
  • Tool Box Bracket
  • Jerry Can holders
  • Gas Bottle Holders
  • Shelves
  • Bike Channels
  • LED Lights
  • Rear Leg Stands
  • Chekerplate Mudguards – single
  • checkerplate Mudguards – Tandem
  • Tie Down points
  • Full Ramps & Single Ramps
  • Extended Drawbar 1700mm
  • Compressor Box
  • Locks (Drop locks or spring locks)
  • Gas Struts
  • Stand-up Spare Wheel
  • Lift Up Rear Door
  • Horse Float Spring for easy lift
  • Electric Brakes – Rated 1.4 tonne GVM
  • Mechanical Over Ride Disk Brakes
  • Front & Rear Brush Guards ( Side Steps )

Trailer Colours

  • Hammertone charcoal
  • Hammertone blue
  • Hammertone light green
  • Hammertone silver
  • Hammertone black
  • Enamel white
  • Enamel Light Green (VIP Green)
  • Enamel Dark green
  • Other colours available upon request fees apply: See HERE for additional colours

We have been manufacturing quality trailers for more than 15 years. Seam Welded - Solid Tie Rails - Quality Built to Last!
